Optical SystemSCHOTT glass apochromatic Optical System
-
Zoom Range3.6x-25.6x
-
Zoom Objective150mm-300mm
-
Adjustment Range of Binocular Tube0-220°
-
Light SourceLED light source, service life up to 100000H
-
Package Size710*710*240mm;1185*575*253mm
Apochromatic Lens (APO Lens):An APO lens produces clear and sharp imaging, reduces visual fatigue and improves image resolution, contrast, and depth of field.
Multi-coated Technology (MC Technology):MC technology helps reduce the echo attenuation of light, increase light transmittance, and improve luminance.
Long Service Life:The light source, designed with secondary optical distribution, supports the service for up to 100,000 hours (or nearly 20 years).
Imported Damping Balance Arm:The pneumatic spring, rivaling the German product in quality, is able to make cantilever and cross arm rotate together while bearing enough load. The added external image attachment stops once it is pulled and starts once it is lifted, thus allowing its application in any working environment.
Built-in HD camera module:The built-in 1/1.8HDMI 4K camera system, featuring high definition and simple wiring, produces ultra-HD videos and more than 12 million-pixel photos.

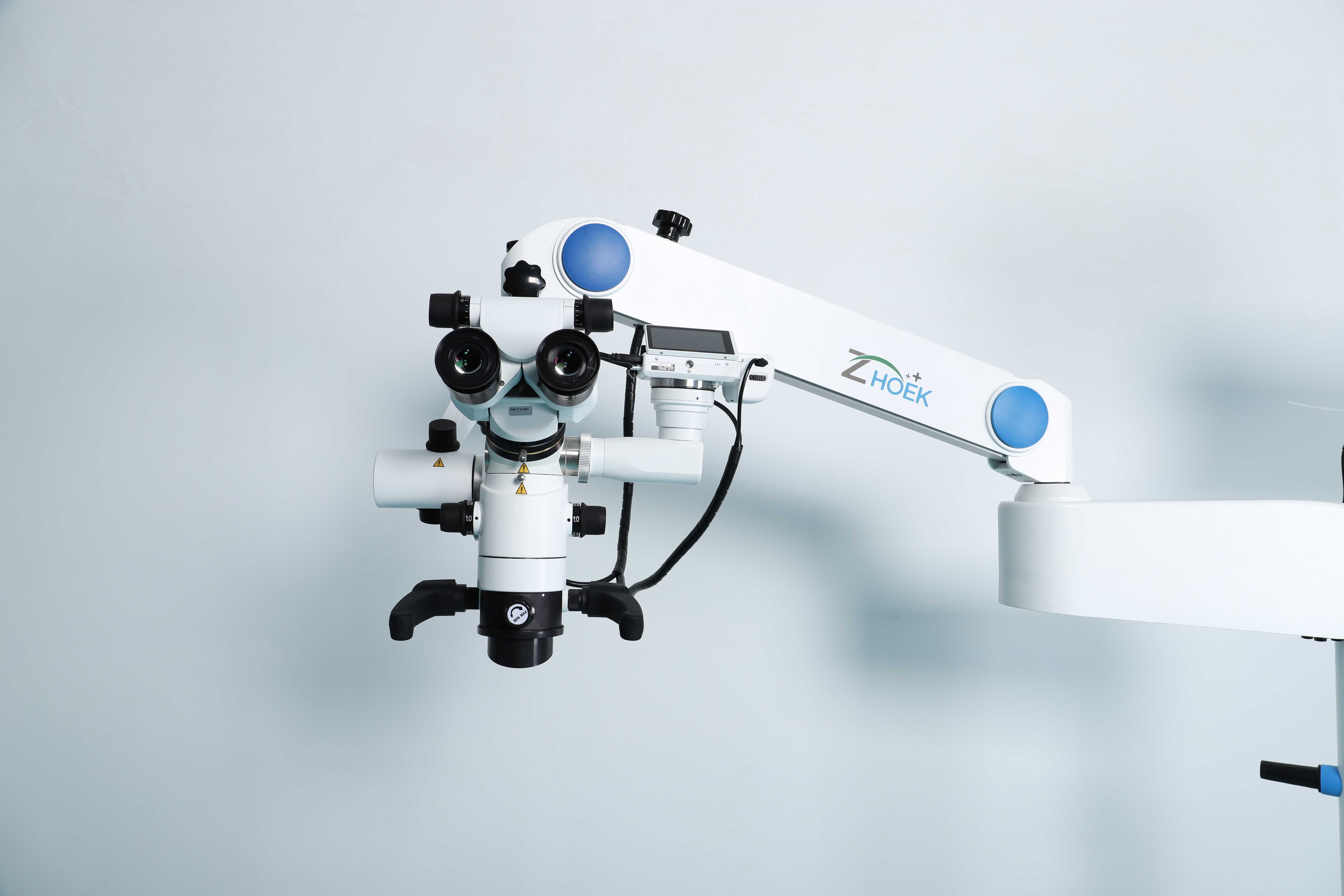

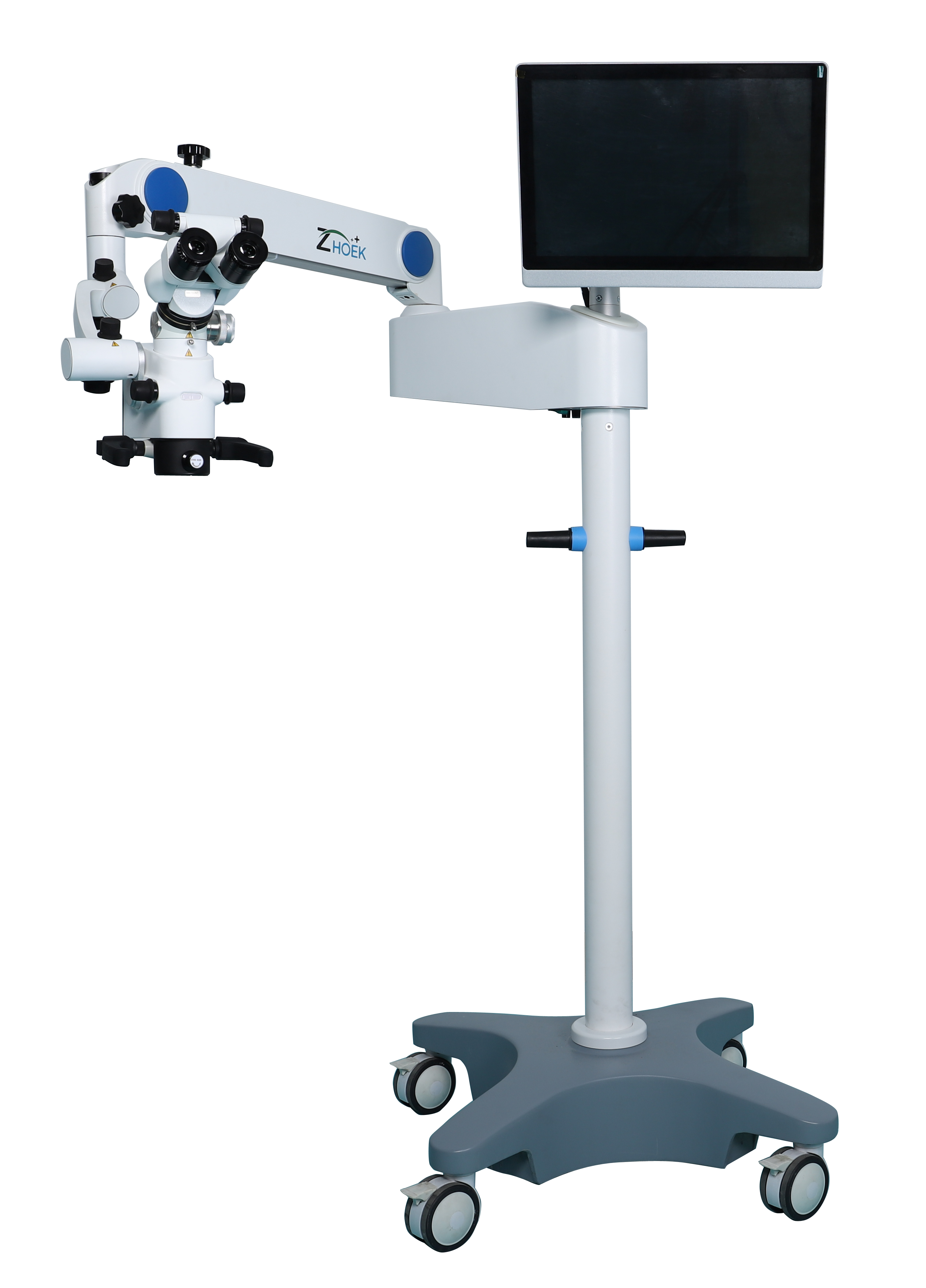

Product Structure:An operating microscope is mainly composed of optical system, lighting system, rack and electrical device.
